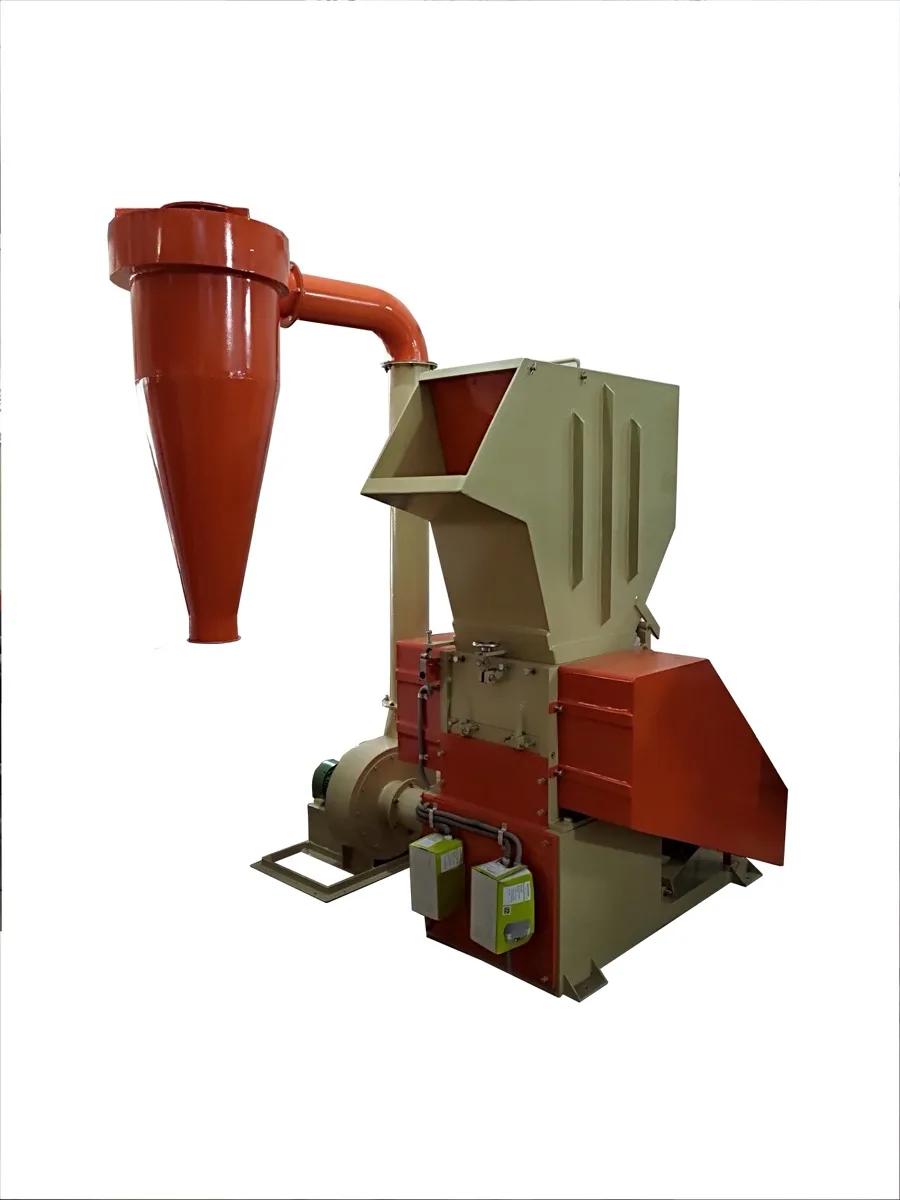

RE16CB Grinder with Blower, 16″×16″ Granulator, 10 + 2 HP
A 10 HP granulator with 2 HP cyclone blower that grinds PET bottles and jars up to 10 litres and conveys the flakes pneumatically to bagging, 90 kg/hr of contained, continuous flake production with one operator.
From Baled Bottles to Bagged Flakes, One Operator
PET flake production lives or dies on handling. The grinding itself is straightforward, PET is thin-walled and cuts easily, but light flakes pile up under an open machine, someone has to keep clearing them, and every handling step costs labour and loses material.
The RE16CB closes that loop: the RE16 platform’s 3+2 blade set cuts bottles and jars up to 10 litres against the screen, and a 2 HP cyclone blower conveys the flakes straight into collection bags the moment they pass the mesh. One operator feeds. The machine does everything else.
At 90 kg/hr of light bottle feed, several thousand bottles an hour, it suits collection centres, washing-line operators and bottling plants destroying rejects with the output contained and saleable. One specification stated faithfully: this blower configuration produces an uneven shred size, which washing lines accept happily. If your buyer requires strictly screen-sized flake, the base RE16 produces it.
RE16CB Grinder with Blower, Full Specifications
| Technical specifications | |
|---|---|
| Base model | RE16 with cyclone blower |
| Throat size | 16″ × 16″ |
| Grinder motor | 10 HP / 7.36 kW |
| Blower motor | 2 HP / 1.47 kW |
| Blower type | Cyclone blower |
| Throughput (light material, 15 mm screen) | 90 kg/hr |
| Output size | Uneven shred size |
| Screen size | 12–15 mm standard / as per customer requirement |
| Blades (rotating + fixed) | 3 + 2 |
| Can grind | PET bottle/jar up to 10 litres |
| Voltage | 415 V / 50 Hz / 3-phase (3P + N + E) |
| Feeding | Manual feeding |
| Machine weight (approx.) | 1,076 kg |
This CB configuration produces an uneven shred size, reproduced faithfully from the machine’s specification. Throughput is rated for light-weight material on a 15 mm screen. Denser scrap grinds at the base-machine rates and output varies with feeding speed and bulk density. Keep metal objects out of the cutting area. They will break the blades. All specifications are subject to change for constant product development.
Key Features
What It Grinds, Plastics Applications
The RE16CB’s plastics duties, each covered in full on its solution page.
PET Bottle Recycling
The headline duty, baled bottles to bagged flakes at collection-hub scale.
Learn more →HDPE & LDPE Bottles
Milk, oil and detergent bottles ground and conveyed on the same machine.
Learn more →Blow Moulding Scrap
Flash, tails and reject containers back to regrind, bagged without manual handling.
Learn more →Platform Siblings in the RE Series
Step down, step up, or switch between base and blower, the same cutting geometry runs across all 14 machines.
RE12CB Grinder with Blower
One size down, 5 + 1 HP · 45 kg/hr on light material.
Learn more →RE20CB Grinder with Blower
One size up, 15 + 3 HP · 175 kg/hr on light material.
Learn more →RE16 Plastic Grinder
The same machine without blower, 10 HP · 150–250 kg/hr · 16″ × 16″ throat, screen-sized output.
Learn more →Setting up PET flake production?
Tell us your bottle intake and whether a washing line follows, we’ll size the machine and the discharge arrangement.
RE16CB Grinder with Blower, Frequently Asked Questions
How many bottles per hour is 90 kg?
A used 500 ml–1 litre PET bottle weighs a few tens of grams, so 90 kg/hr is several thousand bottles, the practical limit is usually operator feeding speed, not the machine. Weigh a sample sack of your typical bottles for a realistic per-hour figure.
Do caps and labels matter?
They grind along with the bottle, normal and accepted at the unwashed-flake grade. Buyers producing food-grade rPET separate polymers downstream by float-sink. If your buyer pays a premium for cap-free flake, de-capping is a sorting decision before the machine, not a machine limitation.
Why is the output listed as uneven shred?
That is the honest specification of this blower configuration: the air-assisted discharge favours throughput over perfectly screened flake, which suits washing lines fine. If your buyer requires strictly screen-sized flake, the base RE16 without blower produces it. We will recommend whichever matches your offtake.
What does a shift produce?
Roughly 700 kg of flake per steady 8-hour shift. Collection centres aggregating more than a tonne a day should look at the RE20CB or RE25CB on the same platform, capacity steps are honest, not optimistic.
What is the price of the RE16CB?
Mid-band in the blower range, see the plastic shredder machine price guide, final figure depending on screen and ducting. Send your intake volumes for a firm quotation.
Can I trial my bottles first?
Yes. Bring your actual material to our works in Andheri East, Mumbai, and watch it processed on this machine before you decide. A trial settles throughput and output-size questions better than any brochure.
